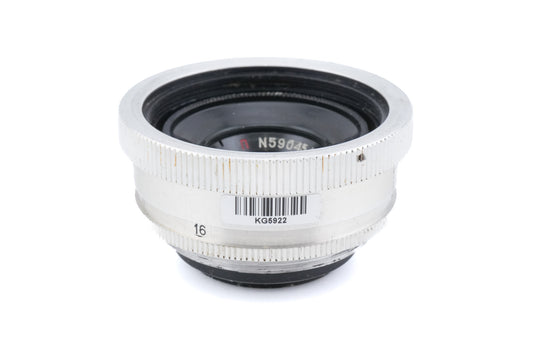

KMZ 28mm f6 Orion-15 - Lens

KMZ 28mm f6 Orion-15 - Lens

Manual focus wide-angle prime lens made for M39 / LTM rangefinder cameras by ZOMZ plant in Zagorsk. It was designed on the basis of the Topogon optical scheme. Metal construction in silver finish.

  • ZOMZ 28mm f6 Orion-15 (4 elements, 4 groups)
  • Minimum focus distance: 1m
  • Aperture blades: 7
  • Size: 51 x 30mm
  • Weight: 80g
View full details

LTM / M39

M39 is a screw-type mount system originally designed by Oskar Barnack for Leica cameras in the 1930s. These Leica Thread Mount (LTM) camera bodies attach lenses using a 39mm threaded screw mount.

This mount was the prominent rangefinder mount for Leica until 1953 when the M3 debuted. The M Mount bayonet spelled the end for Leica’s thread mount cameras, although other manufacturers, like Canon, Leotax, and Zorki, continued to use the M39 mount for their cameras.

There are some early Soviet SLRs that also use a 39mm thread mount called M39. Lenses for this system are incompatible with M39 rangefinder lenses, and vice versa, due to differences in flange distance.

M39 rangefinder lenses can be easily adapted to mirrorless camera systems.

1 of 25
KMZ 28mm f6 Orion-15 - Lens Availability & Price History
Date Sold SKU Quality Control Price Image
11 Sep 2023 T46689 € 254,70 KMZ 28mm f6 Orion-15 - Lens Image
01 Mar 2022 T10384 € 249,00 KMZ 28mm f6 Orion-15 - Lens Image
