Name: Chamonix 45H-1 4x5" Large Format Field Camera - Camera
Brand: Chamonix
SKU: xgozaq

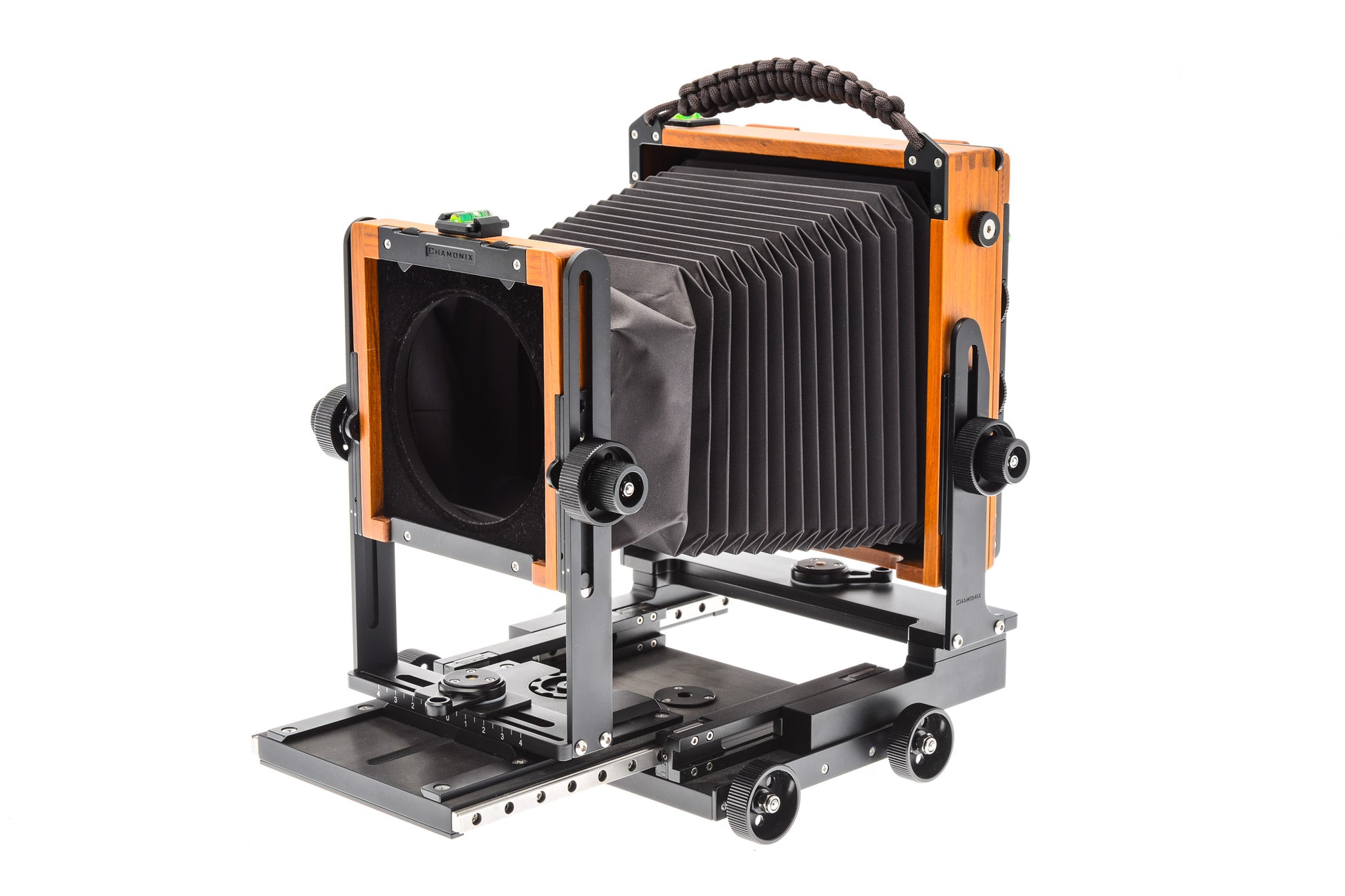

Chamonix 45H-1 4x5" Large Format Field Camera - Camera

Large Format Film Cameras ›
Large Format ›

1 1

Model Details

4x5 manual focus large format camera released by Chamonix. Designed with wide angel lenses in focus. Part of the H series of cameras with faster set-up and close-up times. Does not fold down like the F series allowing the lens to stay on the camera when packed away. The rear standard can be removed and swapped for a 5x7 or 4x10 back. Metal and wood body available in teak and cherry.

Bellows: Max: 350mm. Min: 60mm
Lens borad: Linhof Technica 4x5: 98.2mm x 95.8mm
Frame lines: 6x4.5, 6x6, 6x7, 6x9, 6x12
Front movement: Rise: 70mm. Fall: 41mm. Shift: 40mm (each side). Tilt: 30°. Swing: limited by bellows.
Rear movement: Tilt: 20° backwars/forwards (asymmetric) Swing: 20° to each side (asymmetric). Shift: 50mm to each side. Rise: 40mm. Fall: none.
Size: 248 x 206 x 120mm (folded)
Weight: 1838g

View full details

Sell Yours

Large Format

Large format photography encompasses any format larger than medium format (120). Usually, this refers to formats 4x5 inches (9x12cm) or larger. At one point, there were other formats like half or quarter plate, but nowadays there are 3 common formats; 4x5, 5x7, and 8x10. Sizes larger than 8x10, such as 11x14, are called Ultra Large Format (ULF).
