Hasselblad ArcBody + 45mm f4.5 APO-Grandagon + 35mm f4.5 APO-Grandagon + 75mm f4.5 Grandagon-N + Centre Filter 4x & Filter Holder + Focusing Screen Adapter & RMFX Reflex Viewfinder + Quick-Coupling S + Camera Inverter Mount + Carrying Case

Hasselblad ArcBody + 45mm f4.5 APO-Grandagon + 35mm f4.5 APO-Grandagon + 75mm f4.5 Grandagon-N + Centre Filter 4x & Filter Holder + Focusing Screen Adapter & RMFX Reflex Viewfinder + Quick-Coupling S + Camera Inverter Mount + Carrying Case

Film Camera

€7.499,00 EUR
€7.499,00 EUR
Sale Sold Out
Used item, no tax.
 More payment options

Certified: Tested & inspected with special tools and machinery, found to be working correctly (or unused in original packaging). Any flaws present will be noted and will not affect typical use.

This is very nearly the full ArcBody kit (17511). It is in excellent condition and is working very well. There is a small mark on the rear element of the 75mm lens and a bit more dust than normal inside the 45mm lens, but neither issue will affect images at all.

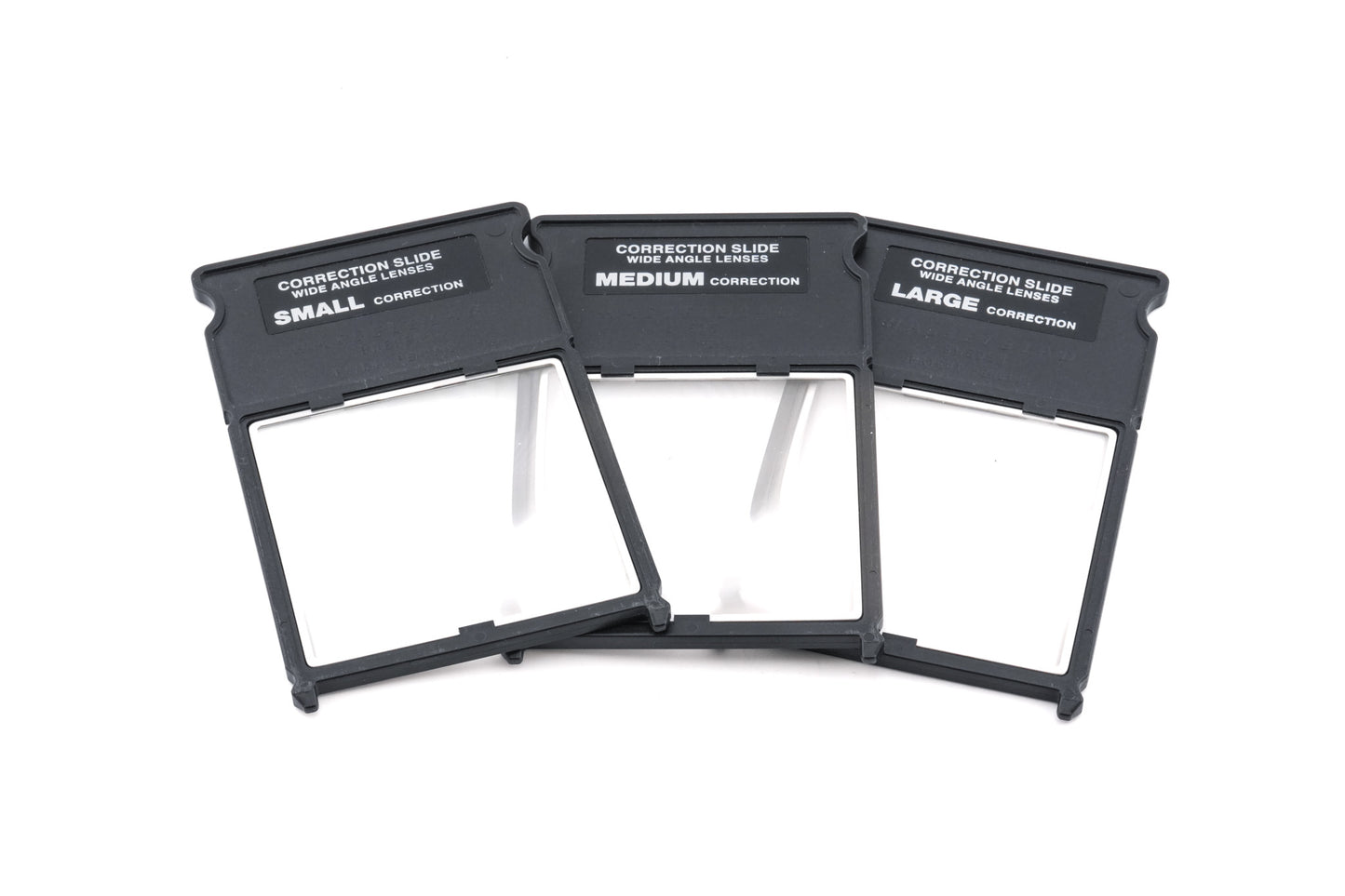

It comes with all the correction slides (Small, Medium, Large, Stray Light, 10º, & 20º) and both lens shades (35/45 & 75)

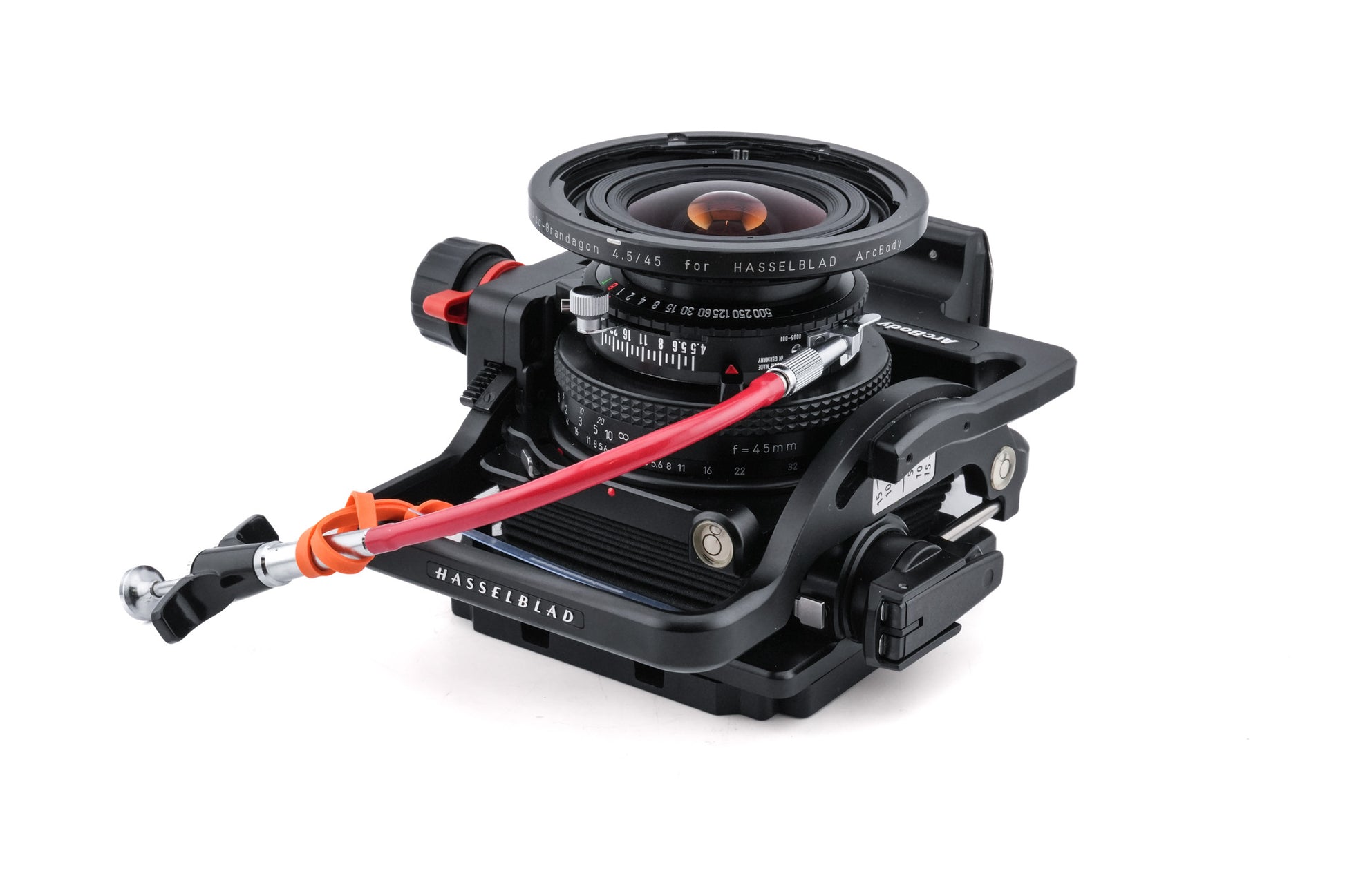

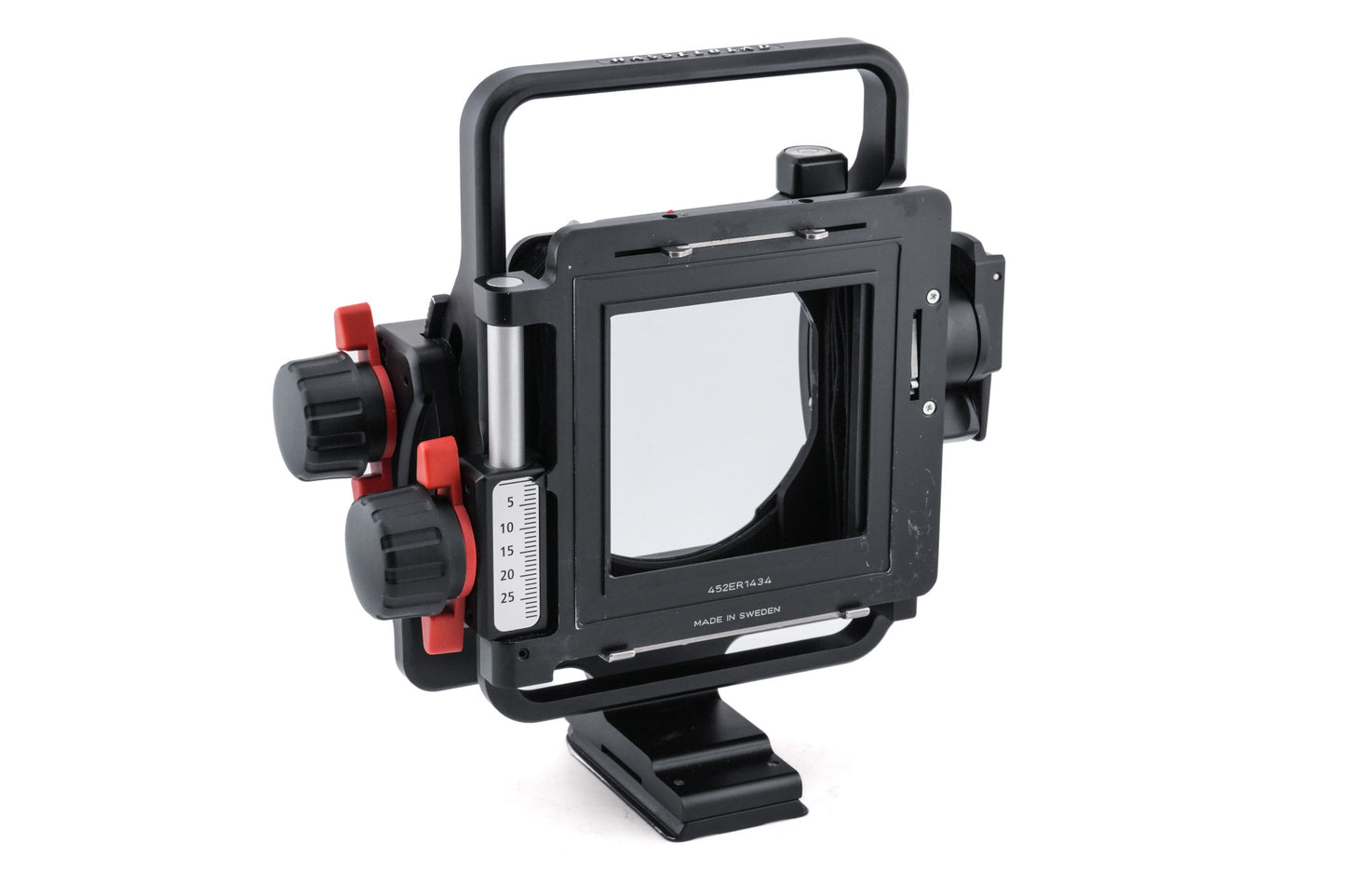

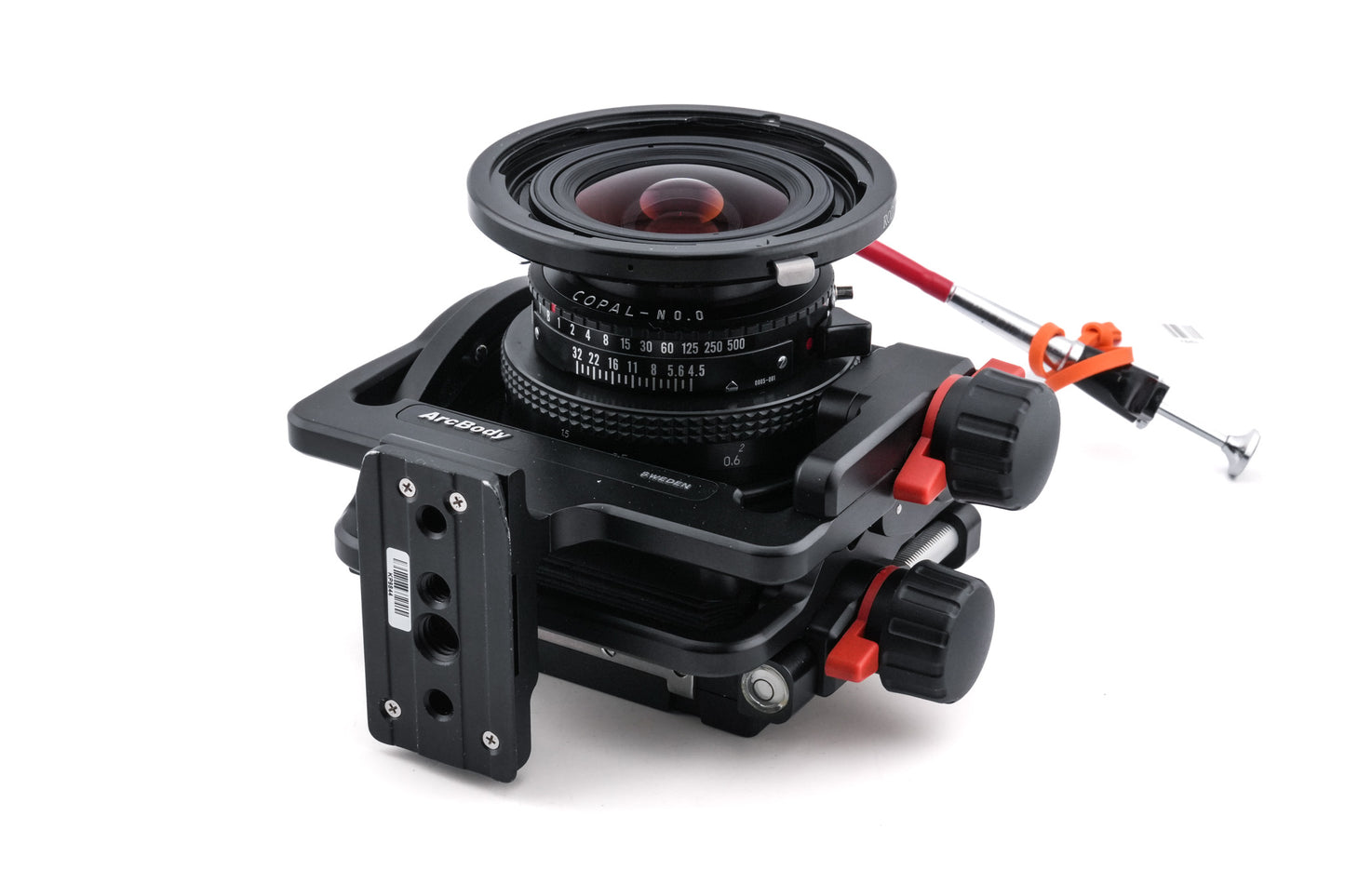

Manual focus 6x6 medium format technical camera introduced by Hasselblad in 1997. This was Hasselblads second technical bellows-type camera body, the first being the FlexBody. It is capable of producing shift and tilt movements for control of depth of field and converging lines. The significant change from the FlexBody to the Arcbody was the introduction of a special series of Rodenstock lenses with an image circle large enough to cover the movements provided by the Arcbody. The rear standard of the body produces up to 28mm of shift, and +/- 15 degrees of tilt. The Arcbody was sold together with a number of special dedicated accessories needed to operate the camera and lenses. Metal body available in black.

  • Size: 160 x 145 x 62mm
  • Weight: 513g

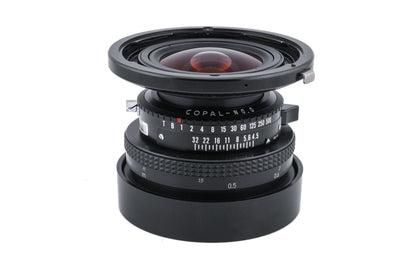

Manual focus wide angle lens made for the Hasselblad Archbody introduced by Hasselblad and manufactured by Rodenstock. It uses its own proprietary mount specifically for the Arcbody. It is part of a series of lenses designed to cover the large image circle needed to accommodate the movements of the camera body. Metal body available in black.

  • Rodenstock 45mm f4.5 APO-Grandagon
  • Minimum focus distance:0.5m
  • Aperture blades: 7
  • Shutter: Copal #00 26.3mm, 1s - 1/500s + B
  • Size: 84 x 57 mm
  • Weight: 464g

Manual focus wide angle lens made for Hasselblad ArcBody 120 cameras by Rodenstock. It gives the equivalent field of view to a 19.25mm lens on full frame/35mm. This version has a dedicated focusing helicoid and a proprietary accessory bayonet and has an image circle wide enough to accommodate the movements of the ArcBody. Metal body available in black.

  • Rodenstock 35mm f4.5 APO-Grandagon
  • Minimum focus distance: 0.5m
  • Shutter: Copal #0 leaf, 1s - 1/500s + B
  • Size: 55 x 84 mm
  • Weight: 372g

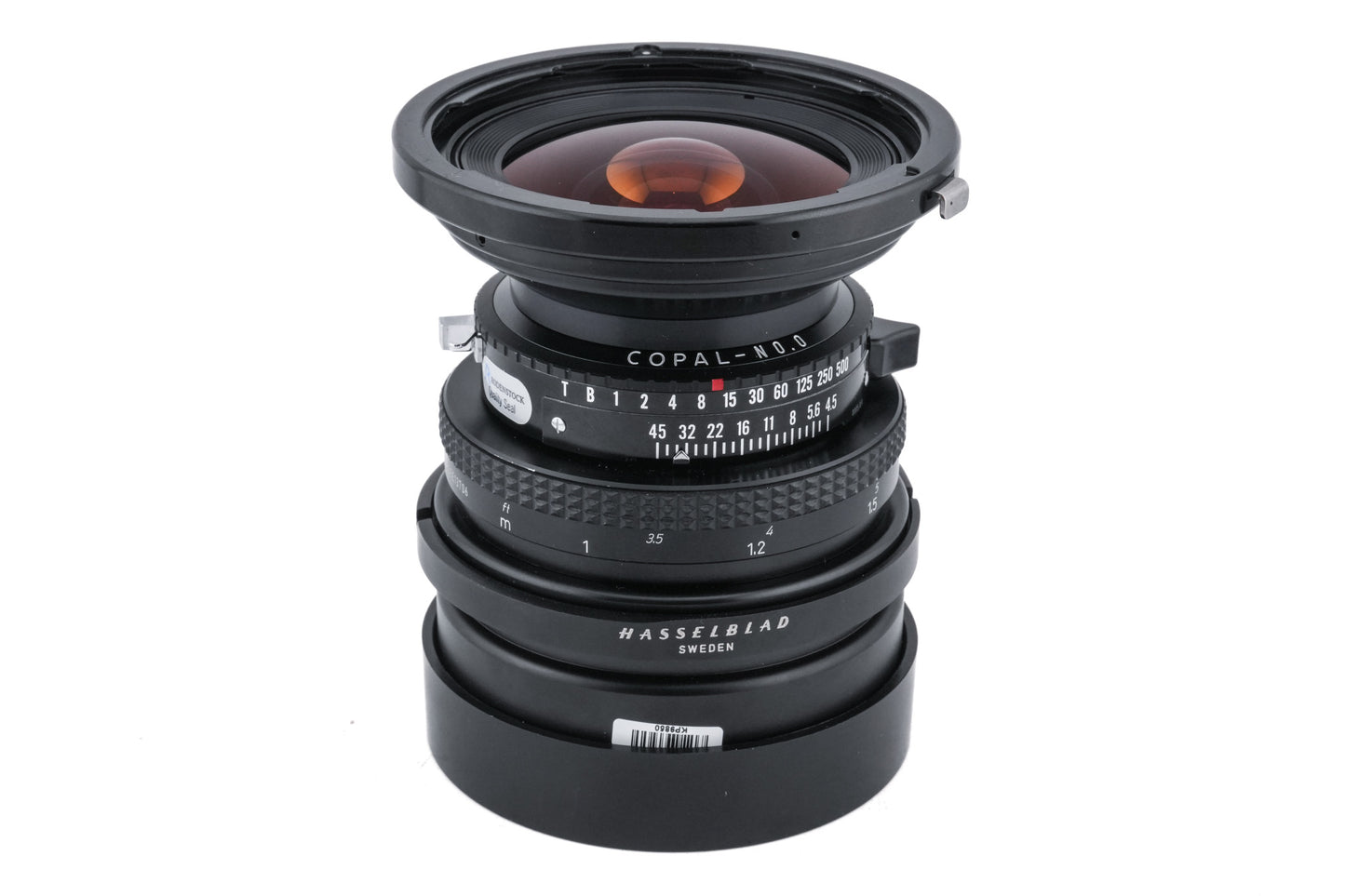

Manual focus wide angle lens made for Hasselblad ArcBody 120 cameras by Rodenstock. It gives the equivalent field of view to a 41mm lens on full frame/35mm. This version has a dedicated focusing helicoid and a proprietary accessory bayonet and has an image circle wide enough to accommodate the movements of the ArcBody. Metal body available in black.

  • Rodenstock 75mm f4.5 Grandagon-N
  • Minimum focus distance: 1m
  • Shutter: Copal #0 leaf, 1s - 1/500s + B
  • Size: 74 x 84 mm
  • Weight: 562g

Center filter made for ArcBody lenses by Hasselblad. It darkens the center of the image to counteract light falloff. This filter is designed specifically for use with the APO-Grandagon 45mm f4.5. Metal body available in black.

  • Size: 80 x 7 mm
  • Weight: 46g

Focusing screen adapter made for the Arcbody camera system introduced by Hasselblad. It has an Acute Matte D screen with a grid pattern. It also has a built-in bubble level. Metal and plastic body available in black.

  • Size: 98 x 95 x 20 mm
  • Weight: 106g

Right angle reflex viewfinder made for V-system medium format cameras introduced by Hasselblad. Metal body available in black.

  • Size: 93 x 75 x 65 mm
  • Weight: 85g

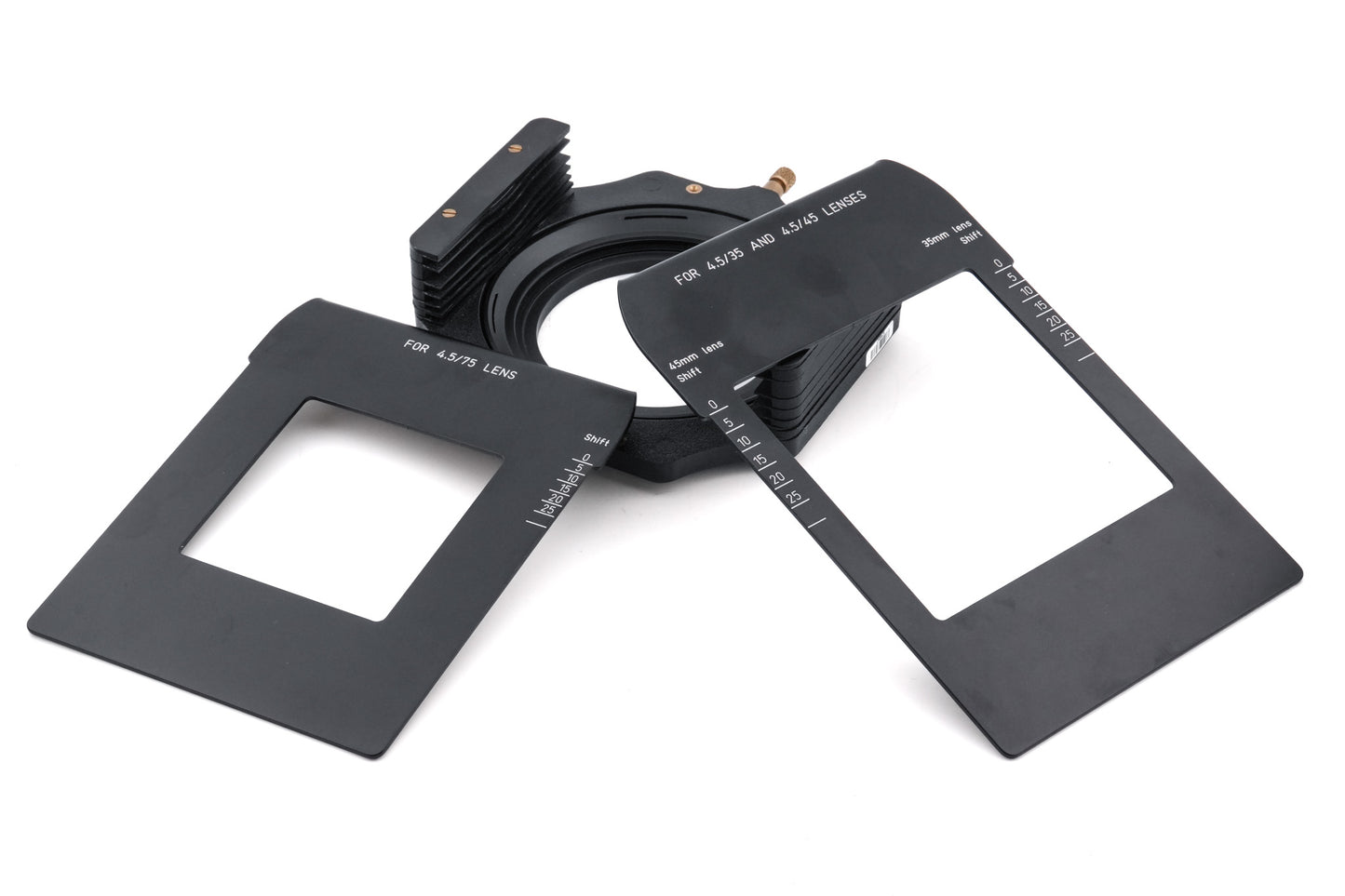

Filter holder made for Hasselblad ArcBody cameras by LEE Filters. It pairs with the two lens shade masks as well as LEE 100x100mm filters. Metal body available in black.

  • Size: 105 x 10 x 128 mm
  • Weight: 40g

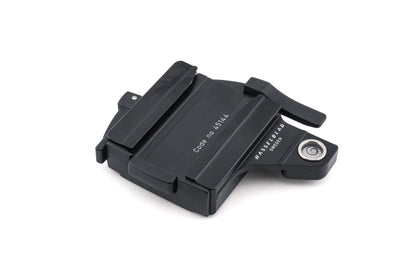

Tripod coupling plate made for V series 120 SLRs by Hasselblad. It's meant for quick attachment and release of newer Hasselblad cameras. Older cameras require an adapter to mount properly. Metal body available in black.

  • Size: 100 x 76 x 21 mm
  • Weight: 140g

Inverting tripod plate made for V series 120 SLRs by Hasselblad. It's meant for use with the ArcBody for stitching photos together using the camera's shift functions. Metal body available in black.

  • Size: 210 x 71 x 26 mm
  • Weight: 286g

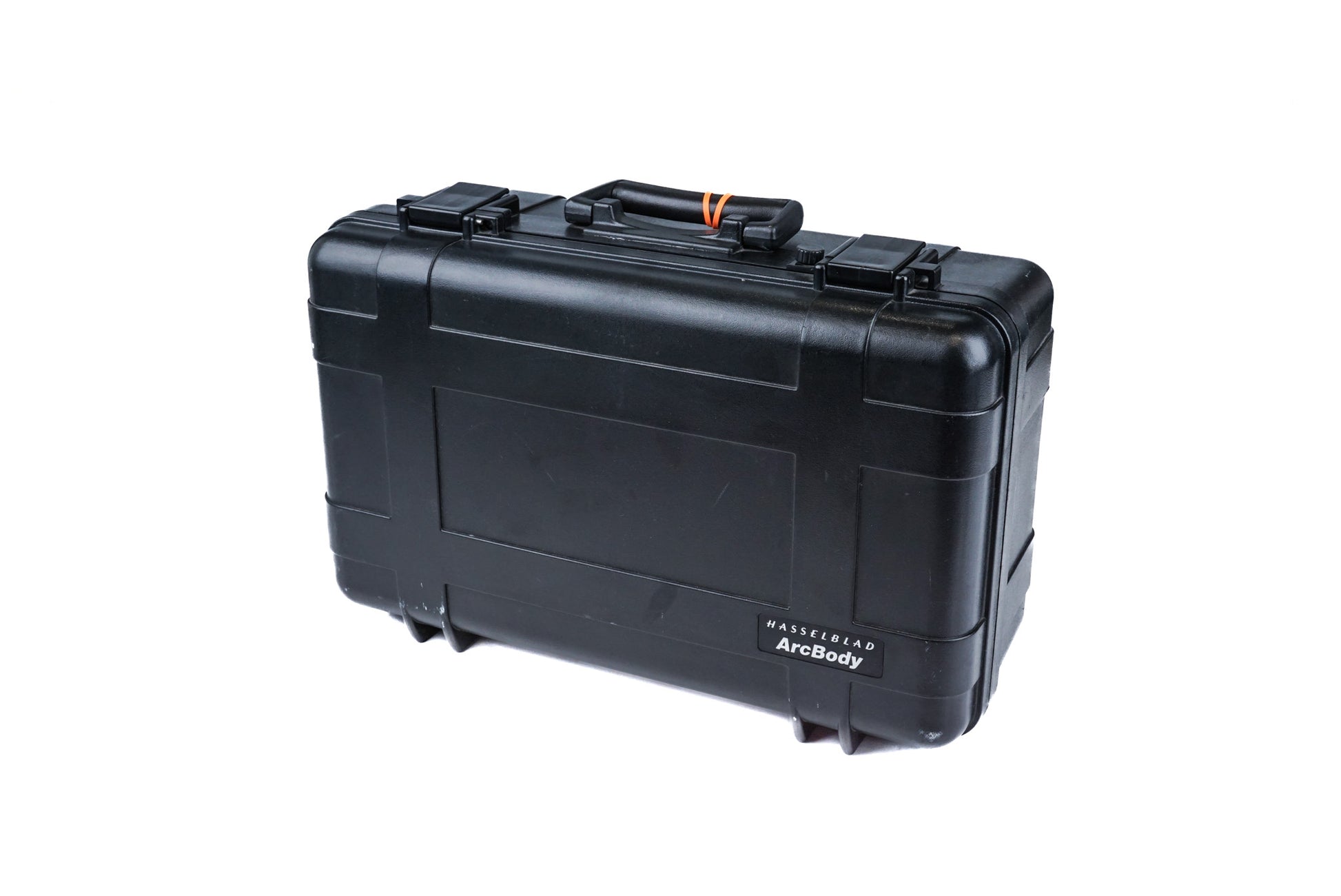

Carrying case made for the Hasseblad Arcbody introduced by Hasseblad. Plastic body available in black.

  • Size: 440 x 290 x 180 mm
  • Weight: 2835g

We individually photograph each used item. You will get the exact item pictured plus any other accessories shown.

This Hasselblad ArcBody + 45mm f4.5 APO-Grandagon + 35mm f4.5 APO-Grandagon + 75mm f4.5 Grandagon-N + Centre Filter 4x & Filter Holder + Focusing Screen Adapter & RMFX Reflex Viewfinder + Quick-Coupling S + Camera Inverter Mount + Carrying Case includes:

  • 30-day Return Policy
  • 6 Month Warranty

We are confident in our team's world-leading knowledge on checking, restoring and repairing. We'll repair, replace, or refund your item if any issues arise. Read More: Warranty Terms & Conditions & Return Policy.

View full details
Unique Details
Barcode
KP9844
SKU
T98424
Condition Rating
Certified
New / Used
Used
Serial Number
45ER1434
Color
Black
Model Details
Model
Hasselblad ArcBody (17015) - Camera
Brand
Hasselblad
Lens Option
Interchangeable
Usage
Film
Focus Type
MF Only
Light Meter
No
Camera Style
All Others
