Name: Leica 9cm f4 Elmar (II) - Lens
Brand: Leica
SKU: gpum

Leica 9cm f4 Elmar (II) - Lens

Lenses
LTM / M39

Rangefinder Lenses ›
LTM / M39 ›

1 1

Model Details

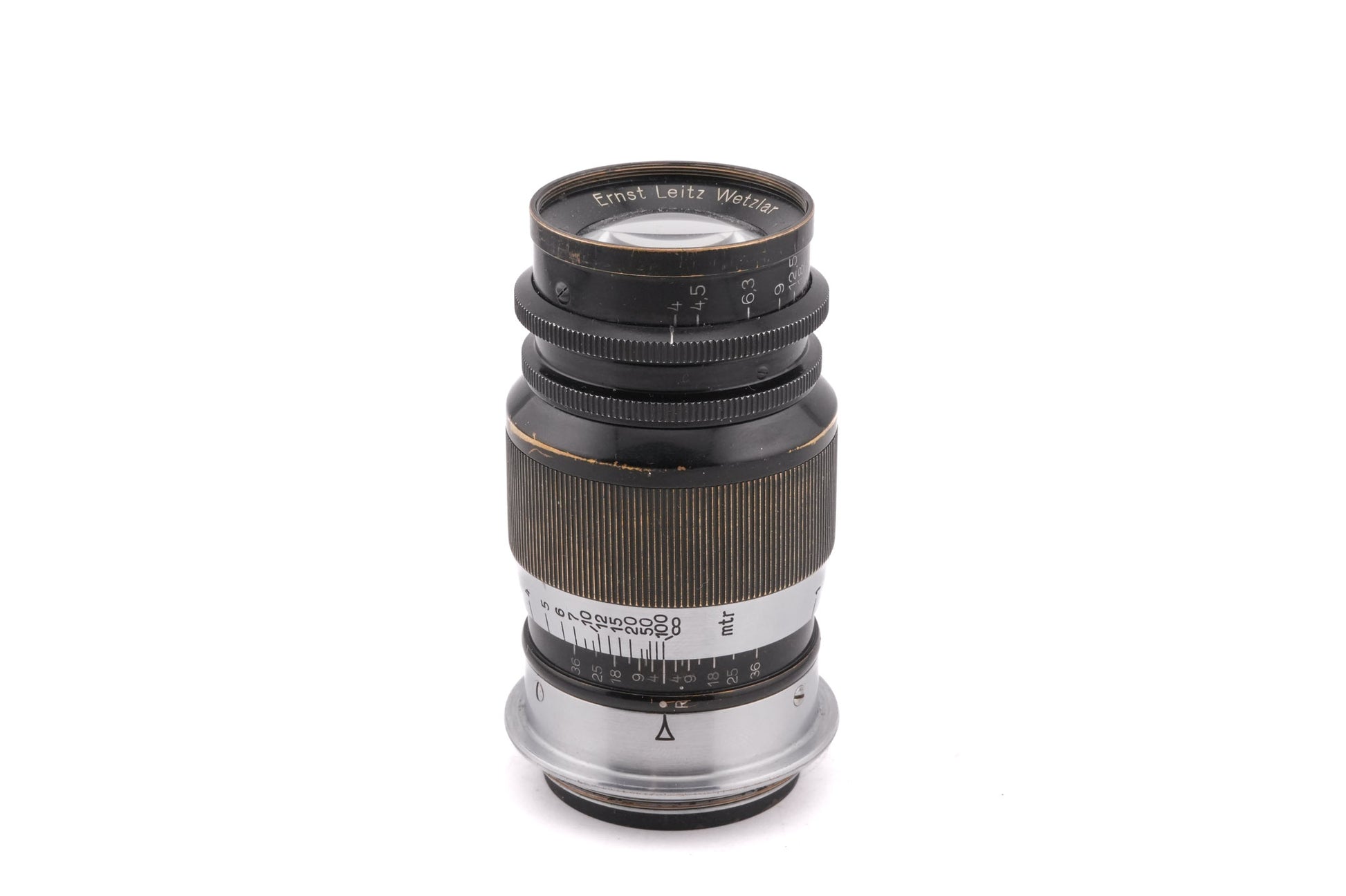

Manual focus telephoto lens made for M39 screw mount 35mm rangefinder cameras introduced by Leica. It was produced between 1933 and 1953 (107480 lenses). The optics unscrew for use with the 16464 focusing adapter on Visoflex. Metal body available in black/silver.

Leica 9cm f4 Elmar (II) (4 elements, 3 groups)
Minimum focus distance: 1 m
Aperture blades: 15
Size: 80 x 45 mm
Weight: 271g

View full details

Sell Yours

LTM / M39

M39 is a screw-type mount system originally designed by Oskar Barnack for Leica cameras in the 1930s. These Leica Thread Mount (LTM) camera bodies attach lenses using a 39mm threaded screw mount.

This mount was the prominent rangefinder mount for Leica until 1953 when the M3 debuted. The M Mount bayonet spelled the end for Leica’s thread mount cameras, although other manufacturers, like Canon, Leotax, and Zorki, continued to use the M39 mount for their cameras.

There are some early Soviet SLRs that also use a 39mm thread mount called M39. Lenses for this system are incompatible with M39 rangefinder lenses, and vice versa, due to differences in flange distance.

M39 rangefinder lenses can be easily adapted to mirrorless camera systems.
